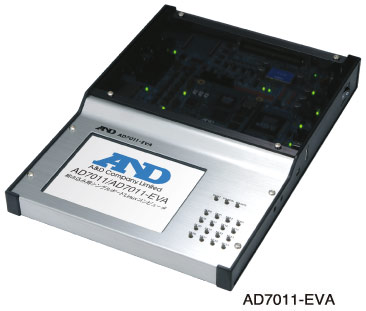

AD7011-EVA A Linux computer powered by an ARM11 core
- Optimized for MATLAB/Simulink target machines
- Comes with a software tool for easy creation of control console screens and graphical user interfaces (GUI)
- Runs a Linux OS with a real-time extension (Xenomai), which is essential for measurement and control
Introduction video (1.5Mbps 33.47MB), (250Kbps 8,7MB)
The AD7011-EVA is a Linux computer with diversified array of inputs and outputs,
including ADC (Analog-Digital-Converter) and DAC (Digital-Analog-Converter),
which are necessary for measurement and control.
You can make control programs using Mathworks MATLAB/Simulink or
C-language (Eclipse) and create GUIs and console screens by drag-and-drop with
A&D's AD-VirtualConsole (bundled software). You perform a series of operations
on a Windows PC and then transfer your work to the AD7011-EVA.
The AD7011-EVA includes S-function programs (driver software) for all equipped
input-output interfaces as standard so you can get to work quickly.
The AD7011-EVA is a very reasonably priced product for actual device
validation tests and control as a target machine of MATLAB/Simulink, a modelbased
development tool that has received much attention recently.
The AD7011-EVA equipped with an i.MX31 with an ARM1136 core processor,
a Linux OS with a real-time extension (Xenomai) and a ZigBee module (option)
for wireless communication.

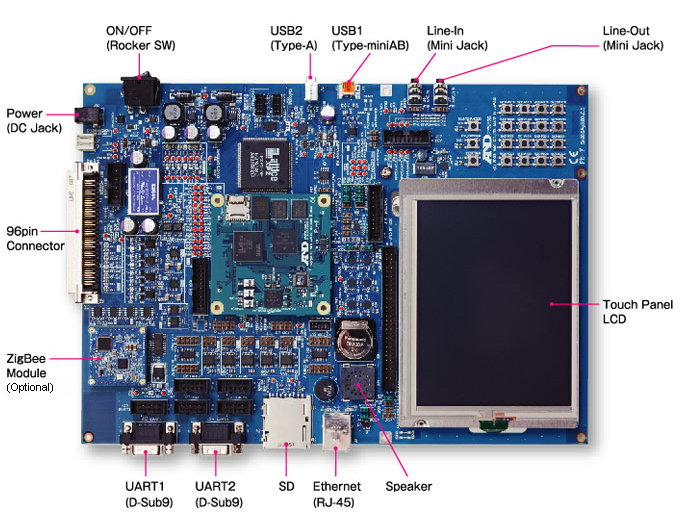

AD7011-EVA Board

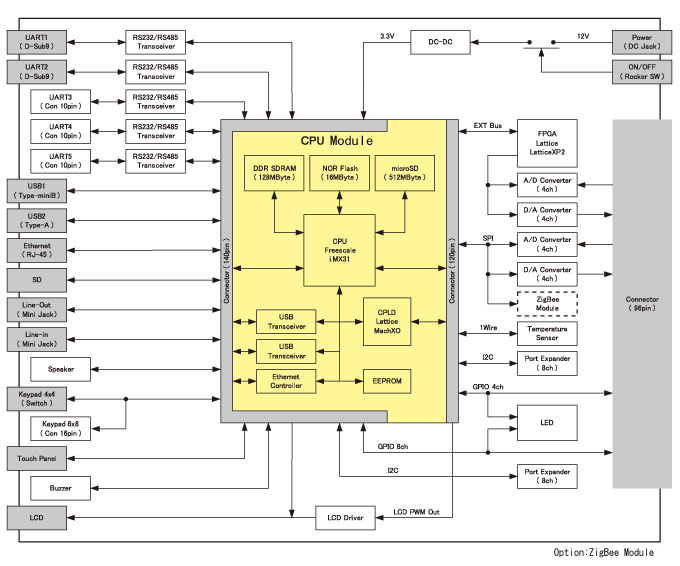

AD7011-EVA Board block chart
MATLAB/Simulink

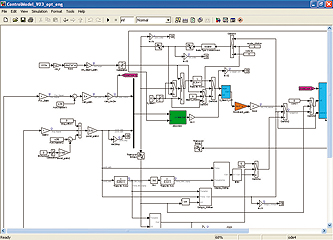

Create control programs with MATLAB/Simulink
Create model-based control programs on a Windows PC using MATLAB/Simulink.
Required software: MATLAB2007b series, 2008b or 2009b series, MATLAB, Simulink, and Real-Time Workshop.
(Trial versions of MATLAB, Simulink and other software can be downloaded from the Mathworks website.)
MATLAB /Simulink R R
●Confirm the license information that is included with the software
●Supported Windows operating systems
Microsoft Windows XP Professional SP3
Microsoft Windows Vista Business SP1 (32bit)
Microsoft Windows 7 Professional (32bit)
*MATLAB and Simulink are registered trademarks of The Mathworks, Inc.

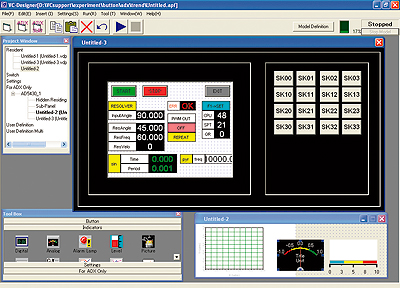

GUI design tool: AD-VirtualConsole Designer
●Easily design your own control console screens on a host PC (Windows PC)
●Choose and place diversified parts, such as indicators, switches, signals,
and graphs, to create various console screens
●Console screens are created using drag and drop operations
●Personalize the color and size of screen parts
●After completing the screen, associate definitions with the control program,
and then run the control program and
console screen together.
Bundled software (A software DVD is bundled with AD7011-EVA.)
●Host environment (Microsoft Windows)
ARM cross compiler (cygwin + gcc4.1.1 + glibc2.4 + binutils2.17)
ARM cross debugger (gdb 6.6)
Application development environment (Eclipse 3.4.2 Ganymede Pleiades All in One + Code Generator Plugin for Eclipse)
GUI development tool (AD-VirtualConsole)
S-function for EVA board (DIO, UART, WatchDog, SPI, 1-Wire, I2C device, etc.)
●Host environment (Linux)
ARM cross compiler (gcc4.1.1 + glibc2.4 + binutils2.17)
ARM cross debugger (gdb 6.6)
Root-file building tool (LTIB)
●Target environment (AD7011-EVA)
・Boot loader : RedBoot
・OS : Linux 2.6.19 + Real-time extension (Xenomai 2.3.4)
・Root file
Diversified software (busybox, glibc, alsa, openssh, samba, etc.)
・Driver Library
Driver Library for EVA (DIO, UART, WatchDog, SPI, 1-Wire, I2C device, etc.)
●Confirm the license information that is included with the software.
●Supported Windows operating systems
Microsoft Windows XP Professional SP3
Microsoft Windows Vista Business SP1
AD7011-EVA Specifications
| Model code | AD7011-EVA |
|---|---|
| OS | Linux + Xenomai (Real-time extension) |
| CPU | Freescale i.MX31 ARM1136JF-S (532MHz), I/D Cache: 16KB/ 16KB, L2 Cache: 128KB, floating-point coprocessor (VFP) |
| Memory | DDR SDRAM: 128MB, NOR: 16MB (for OS), microSD: 512MB (for applications) |
| LCD | LAT057A347F, 5.7-inch, TFT color, QVGA (320 x 240), 260,000 display colors, LED backlight, four-wire resistive touch display |
| UART | RS232C/RS485 (Switching) UART1 and UART2: D-sub 9-connector and pin header UART3 to 5: pin header only |
| USB | Host: Type-A connector x 1 OTG: Mini-AB connector x 1 |
| Ethernet | RJ45 connector x 1 |
| SD | SD card connector x 1 |
| Sound | Line in mini jack (Stereo) x 1, Line out mini jack (Stereo) x 1, Small speaker (Mono), Buzzer |
| I2C | MAX7325 Port Expander (8 push-pull, 8 open-drain output) × 2, pin-header output × 2 |
| 1-Wire | DS18B20 temperature meter × 1, pin header × 1 |
| Keypad | 4 × 4 matrix switch and pin header |
| CSPI | ADC: 4-ch, 12-bit, single ended, ±10V input, AD7323 (96 pin connector)
DAC: 4-ch, 12-bit, single ended, ±5V output, AD5024 (96 pin connector) ZigBee Module (plus antenna) |
| External bus | ADC: 4-ch, 12-bit, single ended, ±10V input, AD7323 (96 pin connector) DAC: 4-ch, 12-bit, single ended. ±5V output, AD5024 (96 pin connector) FPGA for control (LFXP2-5E-5QN208) |
| Interrupt input | LVTTL (96 pin connector) |
| GPIO | 12-bit LVTTL (96 pin connector) |
| Watchdog output | LVTTL (96 pin connector) |
| 96 pin connector | PCR-E96LMD+ male connector (mounted on board) [Honda Tsushin Kogyo Co., Ltd.] |
| EEPROM | 93C66, 4k-bit x 1 (for storing base board information) |
| JTAG | CPU Module PLD pin-header for writing x 1 CPU Module i.MX31 pin-header for debugging x 1 |
| Board size | 210 mm / 8.27 inches x 297 mm / 11.69 inches (A4 paper size) |
| Chassis size | 222 mm / 8.74 inches (W) x 317 mm / 12.48 inches (D) x 43 mm / 1.69 inches (H) |
| Power source | 12V, 3.8A, AC power adapter (Standard), 3.0V button battery (for back-up) |
| Usable temp range | 0 to 70°C |
| Standard accessories | Quick start guide, DVD (development environment software, manual, circuit diagram, etc.), AC adapter, PCR-E96FS+ (96-pin female solder type connector) [Honda Tsushin Kogyo Co., Ltd.] |
