UM-301

Blood Pressure Monitor

	This product is available only in Japan.
	Brochure (PDF 1.2 MB)

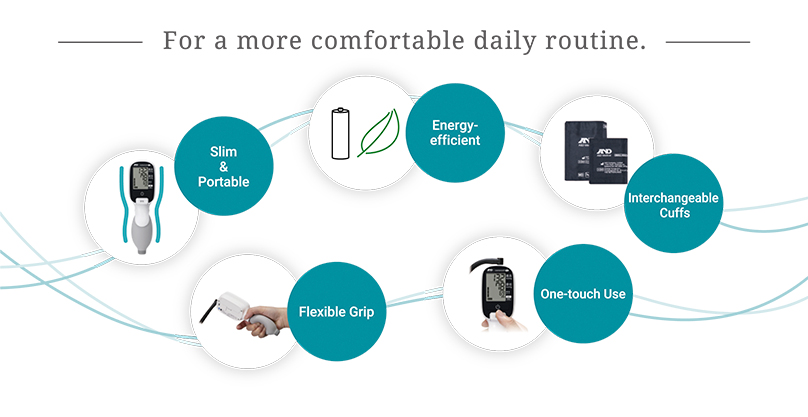

Features

Energy-efficient
The mechanical exhaust valve significantly reduces the number of battery replacements required.
By incorporating a mechanical exhaust valve into the cuff tube, it can be used continuously for approximately 120 days when performing
50 measurements per day.
One battery can perform approximately 6,000 measurements.
Interchangeable cuffs
Mechanical design allows for interchangeable cuff sizes.
Slim & portable
Flexible grip
A robust yet flexible grip accommodating diverse gripping styles.
One-touch use
Intuitive and simple single-tap operation to prevent mistakes.

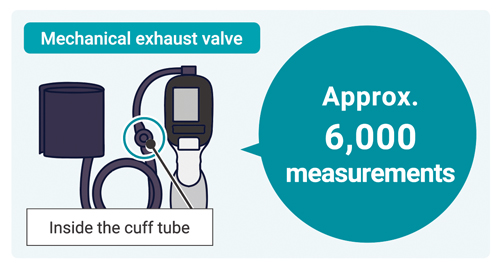

Mechanical Exhaust Valve

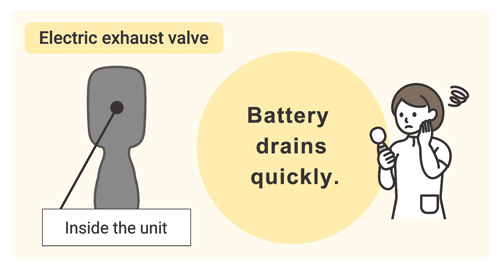

Products with built-in electric exhaust valves use up batteries quickly due to electronic control.

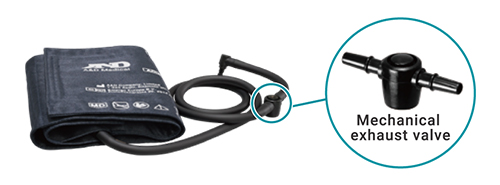

The UM-301 has a built-in mechanical exhaust valve in the cuff tube.
This mechanical exhaust valve does not use electricity, so it can be used for long periods of time without battery replacement.

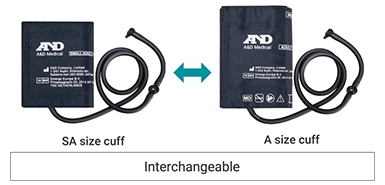

Interchangeable Cuffs

Mechanical design allows for interchangeable cuff sizes. Mechanical exhaust valves matched to each cuff size are included with the cuffs.

Technical Specifications
Measurement Method	Oscillometric
Measurement Range	Pressure	0 to 299 mmHg / Pulse: 40 bpm to 180 bpm
	SYS	60 mmHg to 279 mmHg / DIA: 40 mmHg to 200 mmHg
Measurement Accuracy	Pressure	±3 mmHg
	Pulse	±5 % of the reading value
Power Source	AA alkaline ( or manganese ) battery x 1
Battery Life	Approx. 6,000 measurements with alkaline battery / Approx. 2,000 measurements with manganese battery ^*
Dimensions (W x H x D)	Approx. 53 x 42 x 182 mm
Unit Weight	Approx. 120 g excl. battery

*Based on continuous measurements at room temperature (23 °C) with each measurement taking 50 seconds

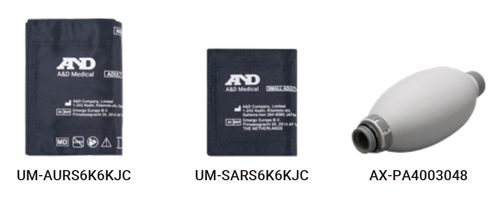

Optional Accessories

Product Code	Option Name	Arm Circumference
UM-AURS6K6KJC	A Size Cuff	22 cm - 32 cm
UM-SARS6K6KJC	SA Size Cuff	16 cm - 24 cm
AX-PA4003048	Inflation Bulb	-

What Is In The Box

1 Blood Pressure Monitor

1 A Size Cuff (22 cm - 32 cm)

1 AA Battery

1 Instructions For Use
