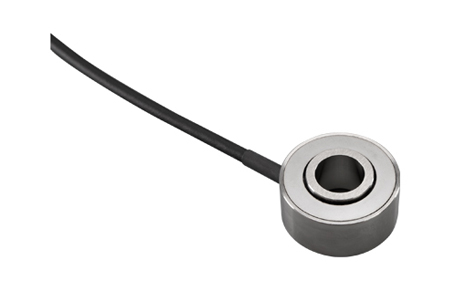

LCC29

Miniature Through-Hole Load Cell

	This item is made to order
	Brochure (PDF 240 KB) Drawings (PDF 59 KB) CAD File (DXF)
	Download 3D CAD

Features

Outer Diameter: φ25 mm

Inner Diameter: φ10 mm

Height: 12 mm

Rated Capacity: 5 kN to 15 kN

Ideal for: Installation in restricted spaces due to its compact size

Typical applications:
• Bolt force measurement
• Crimp force measurement
• Press-fit force measurement

Specifications

Model	LCC29KN005	LCC29KN010	LCC29KN015
Rated capacity (R.C.)	50 N (5.099 kg)	100 N (10.20 kg)	200 N (20.39 kg)
Natural frequency	31 kHz	38 kHz	39 kHz
Rated output (R.O.)	1.9 mV/V or more
Non-linearity	2 % of R.O.
Hysteresis	2 % of R.O.
Repeatability	2 % of R.O.
Recommended excitation voltage	5 VDC
Maximum excitation voltage	10 VDC
Zero balance	±10 % of R.O.
Input terminal resistance	Approx. 700 Ω
Output terminal resistance	Approx. 700 Ω
Insulation resistance	Greater than 1000 MΩ at 50 VDC (B/E)
Temperature effect on zero point	±0.5 % of R.O. / 10 °C
Temperature effect on span	±0.5 % of Load / 10 °C
Temperature compensation range	0 °C to 50 °C
Allowable temperature range	-10 °C to 60 °C
Safe overload	150% of R.C.
Cable	φ3 mm, 4-core shielded cable / 3 m
Material	Stainless steel
Weight	Approx. 25 g
