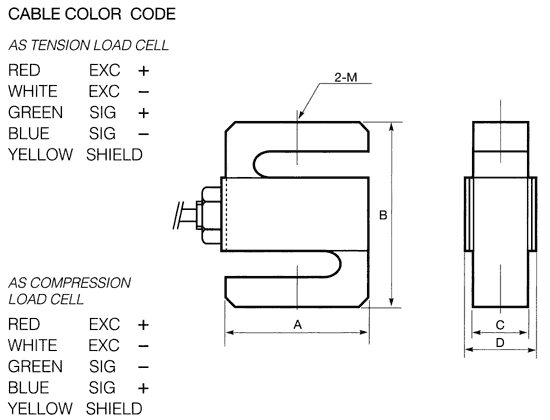

LC-1205 (Tool Steel)
UNIT=mm
| Capacity | A | B | C | D | E |
| LC1205-K20/K50 | 50/1.97” | 64/2.52" | 19/0.75" | 23/0.91" | M6×1/0.04"×11/0.43" |
| LC1205-K100 | 50/1.97” | 64/2.52" | 12/0.47" | 16/0.63" | M6×1/0.04"×11/0.39" |
| LC1205-K200/K500 | 50/1.97” | 64/2.52" | 19/0.75" | 23/0.91" | M12×1.75/0.07"×10/0.39" |
| LC1205-T001A | 75/2.95” | 100/3.94" | 24/0.94" | 28/1.10" | M18×1.5/0.06"×25/0.98" |
| LC1205-T002 | 75/2.95” | 100/3.94" | 24/0.94" | 28/1.10" | M18×1.5/0.06"×22.5/0.89" |
| LC1205-T005 | 75/2.95” | 100/3.94" | 36/1.42" | 40/1.57" | M24×2/0.08"×21/0.83" |
