Multiple models are available to meet diverse market demands and system requirements.

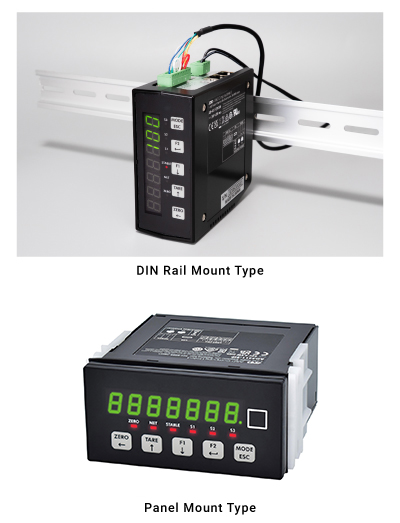

Mounting Options:
Supports both panel mount and DIN rail mount configurations for flexible installation.
Interface Variants:
Available with a range of communication interfaces including:
Industrial Ethernet: EtherNet/IP, PROFINET, EtherCAT
Conventional Interfaces: BCD output, RS-232C, RS-485, Analog output
Interface
Mount Type
Panel Mount
DIN-rail Mount
EtherNet/IP
AD-4411-EIP
AD-4411-EIP-DIN
PROFINET
AD-4411-PRT
AD-4411-PRT-DIN
EtherCAT
AD-4411-ECT
AD-4411-ECT-DIN
BCD output
AD-4411-BCD
–
RS-232C
AD-4411-232
–
RS-485
AD-4411-485
–
Analog output
AD-4411-DAC
–
Common features across all models
High-speed & High-accuracy Weighing
High Performance Digital Filter (HPDF）
Effectively eliminates vibrations for stable and accurate weighing, even in harsh environments. Reduces the need for mechanical anti-vibration measures, cutting costs and maintenance.
High-Speed Sampling
1200 times/second sampling rate enables fast and accurate measurements, especially when combined with HPDF.
Easy HPDF Tuning
Use the free WinCT-AD4411 software to visually adjust filter strength and response speed.
Easy and Tool-Free Installation
Tool-free mounting for both panel mount and DIN rail mount types
Unlike conventional indicators that require a screwdriver, AD-4411 models can be easily installed without screws. The DIN rail type features a uniquely engineered slide hook mechanism.
Flexible load cell connection
Built-in jumper enables software-based switching between 4-wire and 6-wire load cell connections, reducing installation effort.
Easy Setup and Maintenance for Smooth Introduction and Operation

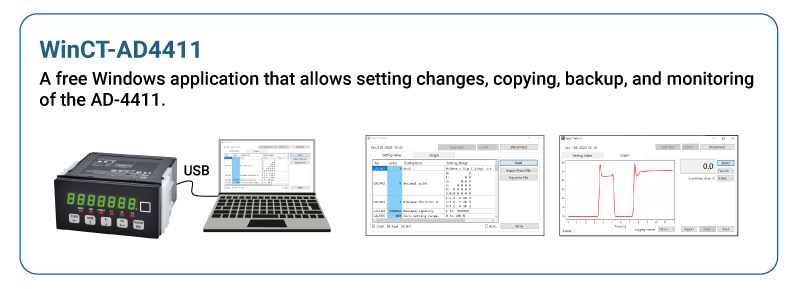

Easy setting updates from a PC
Settings can be easily modified from a PC via the rear USB Type-C port and dedicated software (WinCT-AD4411).
Backup and copy settings
Save settings to a PC and easily export them to other units, greatly streamlining setup for multiple device installations.
Real-time waveform monitoring
Monitor measured values graphically in real-time to visually understand the effects of the digital filter and other parameters.
Features of Industrial Ethernet-Compatible Models (AD-4411-EIP/PRT/ECT/ EIP-DIN/PRT-DIN/ECT-DIN)
Industrial Ethernet Support
EtherNet/IP, PROFINET, and EtherCAT
Daisy Chain Connection
Two communication ports enable daisy chain connection without a switching hub.

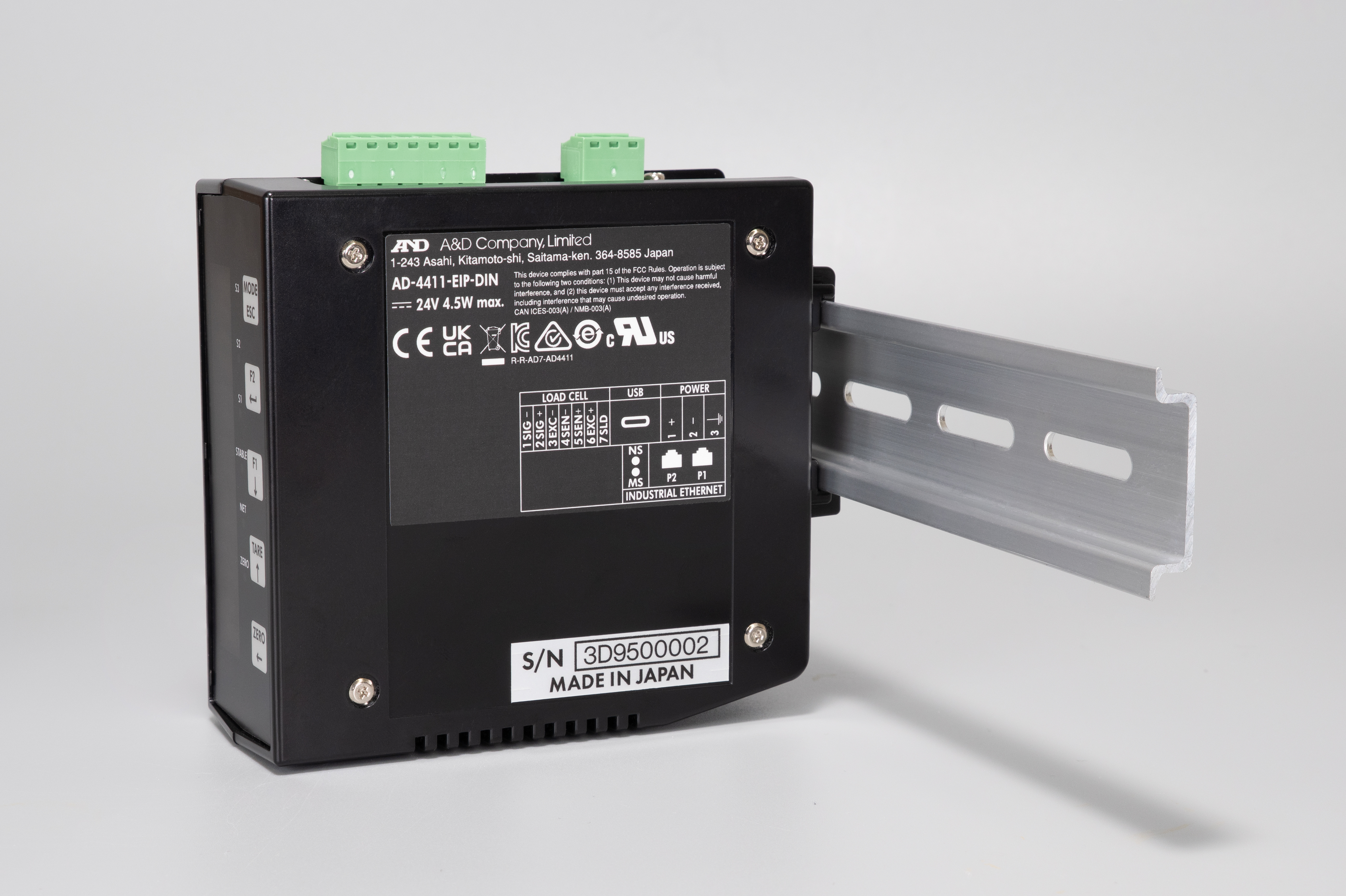

Features of DIN Rail Mount Models(AD-4411- EIP-DIN/PRT-DIN/ECT-DIN)

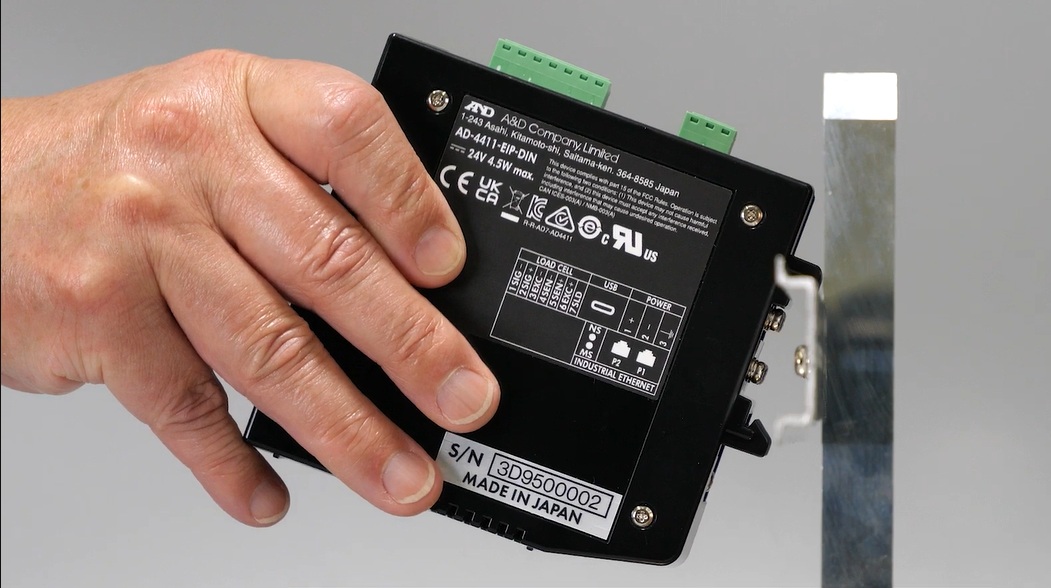

Uniquely engineered slide hook mechanism
Enables easy installation onto control panels without screws
Videos
Introduction to AD-4411 (Panel Mount Type)
Introduction to AD-4411 (DIN Rail Mount Type)
Quick Installation of DIN Rail Mount Type
Easy connection (WinCT-AD4411)
Internal setting change and backup function (WinCT-AD4411)
Easy setting updates from a PC
