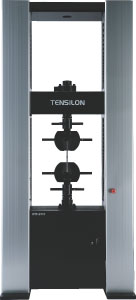

RTF Series TENSILON

Universal Material Testing Instrument

	The TENSILON RTF is our newest universal testing machine offering innovative measuring possibilities, based on A&D's newly-developed and extensive technological knowledge. The RTF Series is a world-class Class 0.5 testing machine. Having improved the overall design and structure of the machine, we achieved a very strong load frame stiffness enabling super-high accuracy in measurement. We also took the informed opinions of machine operators into consideration in order to improve the performance and functions of our model. The TENSILON RTF Series heralds the beginning of a new era in measurement.

	Brochure (PDF 14 MB)
	OPTIONAL ACCESSORIES Brochure (PDF 3,349KB)

Features

A&D's world-class Class 0.5 testing machine

Load frame stiffness has been greatly improved by 30%

Rated output accuracy of up to 1/500 is guaranteed

High-speed sampling:1 msec

A maximum of 13 input signal channels

Color touch panel (optional)

Various operational environments

Color Touch panel

The color touch panel offers superb visibility and easier operation.

Either the color touch panel OP-01 or MSAT data processing software (on a personal computer) can be selected for user interface.

	Touch Panel	MSAT	Display	Commander	Recorder
RTF with Touch panel	OP-01	Optional	Optional	Optional	Optional

Test Screen The main window for displaying a graph and starting a test	Mode Selection Select testing mode
Condition Measurement Setting test speed, such as constant crosshead speed and constant load increase speed	Operation Window Ultra-fine, fine and coarse adjustments possible
Load Calibration Simple load calibration with the touch of a button

MSAT (Multi Signal Analysis Testing)

Data processing software

The MSAT series is equipped with functions for not only testing machine operation but also data analysis, calculation and data storage for each testing mode. The operator can select Standard test (tensile, compression and bending) mode, Peeling test mode, Cycle test mode, Creep test mode, Stress relaxation test mode etc. depending on the purpose of the test.

PC operation environment OS: Windows XP Professional. Program size: 80Mb or smaller. Memory requirement: 512Mb or over. Authority requirement: Administrator authority. USB: One USB port. Display resolution: 800x600 dots or higher color display.

	Touch Panel	MSAT	Display	Commander	Recorder
MSAT	Optional	Standard (Mandatory)	Optional	Optional	Optional

Standard layout setting during a measurement

Status Display Window, Graph Display Window and Table Display Window	Operation Conditions Window, Sample Information Window, Detailed Conditions Window, Dimension Table Window
Analysis Condition Window, Table Display Window, Arbitrary Formula Window	Reanalysis Window

Display & Commander

RTF series with user interface for advanced operation

Display

Detachable digital display for load and displacement indication. This display can be attached with magnets to any part of the machine and it does not obstruct the user when fixing a sample to the jig or testing a sample as its position can be freely adjusted.

Fixing method	Magnet attachment method
Display data	Load/displacement
Load	6-digit indication
Displacement	6-digit indication

Load

6-digit indication
The indication unit will be automatically selected from kN, N, mN or N.

Displacement

1/1000 display at minimum
The detachable display offers a more organized and efficient workspace.

Commander

Handy compact commander for testing machine control. This commander can be attached to the top, bottom, left or right of the testing machine digital display for load and displacement indication.

The commander's manual operation buttons are ergonomically designed with bright colors and varied sizes for superior ease-of-use. The jog dial on the right hand side of the commander offers extra flexible control and the operator can move the crosshead up and down by manually rotating this dial.

Applications

A&D's wide range of applied products for even more advanced applications :

Applied test jigs for strength measurement

Screw action jaws	Air jaws	Compression cage
Wedge action jaws	Compression test jig	Compression type bending test jig

Applied testing devices for elongation measurement

SG series strain gauge device for measuring
distance between gauge marks

Non-contact extensometer between gauge marks

Applications

LOT SET Application

Excel PU

Quality control application

Applied testing devices for temperature / environment test

· Constant temperature / constant humidity testing devices
· High temperature testing devices
· Ultra-low temperature testing devices
· High humidity in gas atmosphere testing devices
· High humidity in vacuum testing devices
· Dipping testing devices

Data Recorder

Analog recorder (AR-6600-7)

This recorder is equipped with a control panel providing easy setup with one-touch zero-span adjustment and auto ranging.

Load frame table

	Dimensions (mm)
RTF-20 for RTF-1310, RTF-1250, RTF-1225 and RTF-1210	680(W)x555(D)x630(H)
RTF-22 for RTF-1350 and RTF-1325	897(W)x650(D)x460(H)

Recorder table (Wing)

	Dimensions (mm)
RTF-21 for RTF-1350 and RTF-1325	420mm(W)x430mm(D) Can be mounted on either the right or left side.
RTF-23 for RTF-1310, RTF-1250, RTF-1225 and RTF-1210	420mm(W)x430mm(D) Can be mounted on either the right or left side.

Wing (sold separately)

Specification

	RTF-2430	RTF-2425	RTF-2410	RTF-2350	RTF-2325
Loading System	Closed-loop micro-computer controlled digital servo mechanism
Maximum Capacity	300kN	250kN	100kN	50kN	25kN
Test Width (mm)	590mm
Crosshead Stroke (mm)	1370mm		1160mm	1180mm	1210mm
Effective Stroke (mm)	625mm		720mm	798mm	828mm
Crosshead Speed (mm/min)	0.0005 - 500mm/min		0.0005 - 1000mm/min
Speed Accuracy	±0.1%
Crosshead Return Speed (mm/min)	500mm/min or 250mm/min		1000mm/min or 500mm/min
Load Measurement Accuracy	±1% of indicated value		±0.5% of indicated value
Load Range	Full Auto Range ( max. 128 times)
Load Calibration	One touch auto-calibration
Safety Function for overloading	Provided
Sample Break Detection	Provided
Stroke Limiter	2 points Upper/Lower
Sampling speed	1msec
Weight	1300kg		780kg

	RTF-1350	RTF-1325	RTF-1310	RTF-1250	RTF-1225	RTF-1210
Loading System	Closed-loop micro-computer controlled digital servo mechanism
Maximum Capacity	50kN	25kN	10kN	5kN	2.5kN	1kN
Test Width (mm)	590mm		420mm
Crosshead Stroke (mm)	1000mm		1100mm
Effective Stroke (mm)	618mm		580mm	690mm	665mm	775mm
Crosshead Speed (mm/min)	0.0005 - 1000mm/min
Speed Accuracy	±0.1%
Crosshead Return Speed (mm/min)	1000mm/min or 500mm/min
Load Measurement Accuracy	±0.5% of indicated value
Load Range	Full Auto Range ( max. 128 times)
Load Calibration	One touch auto-calibration
Safety Function for overloading	Provided
Sample Break Detection	Provided
Stroke Limiter	2 points Upper/Lower
Sampling speed	1msec
Weight	330kg		110kg
