WinCT-Moisture (Dedicated PC software for A&D's moisture analyzers)
mx-a
WinCT-Moisture is the dedicated PC software (freeware) designed for A&D's moisture analyzers, enabling the transfer and processing of measurement data on a PC running Microsoft Windows 11 or Windows 10. This software suite is highly useful for efficient moisture analysis, especially when determining and optimizing measurement conditions.
The software package is comprised of three main applications:RsFig,RsTemp, andRsSetup.
RsFig (Graphing Software)

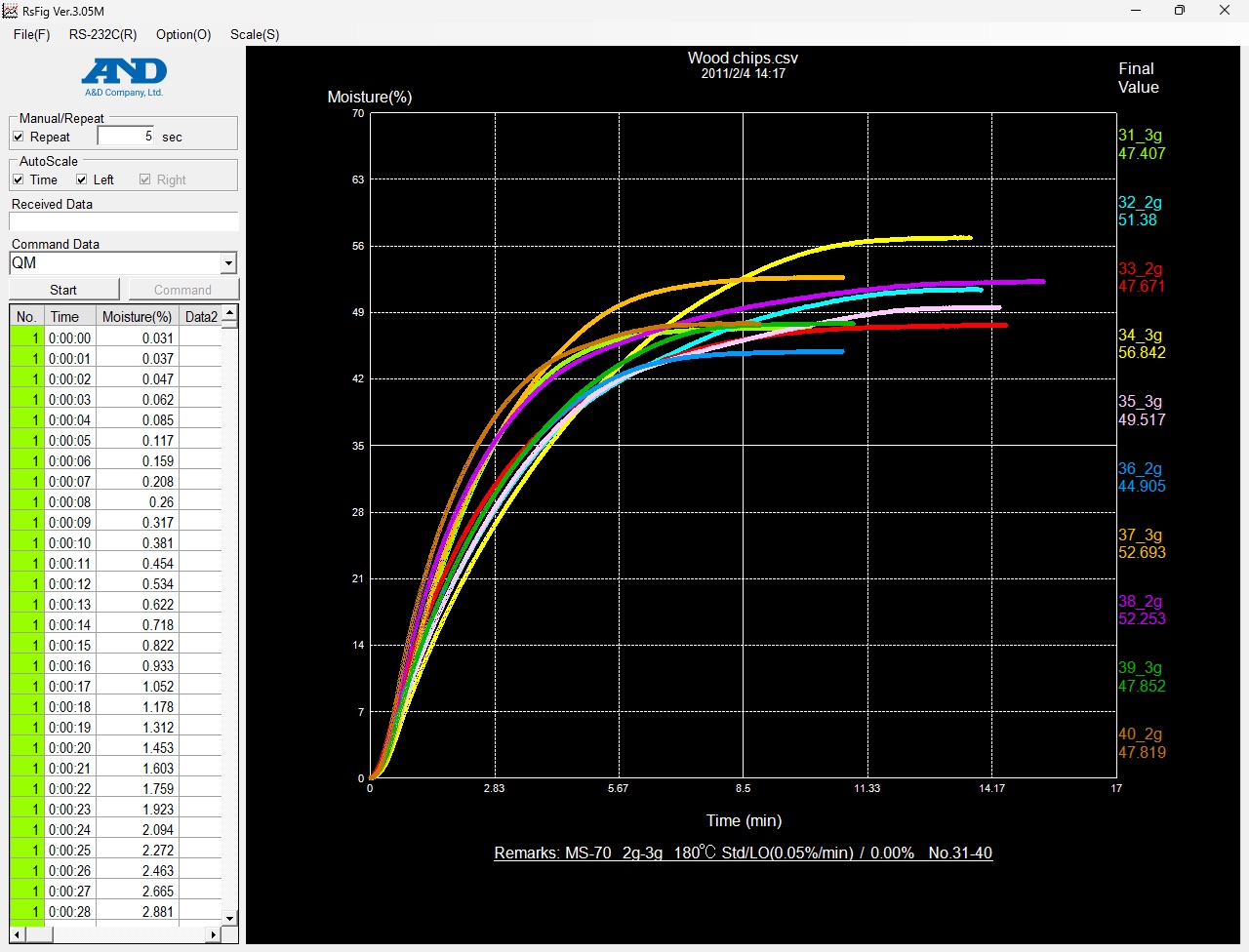

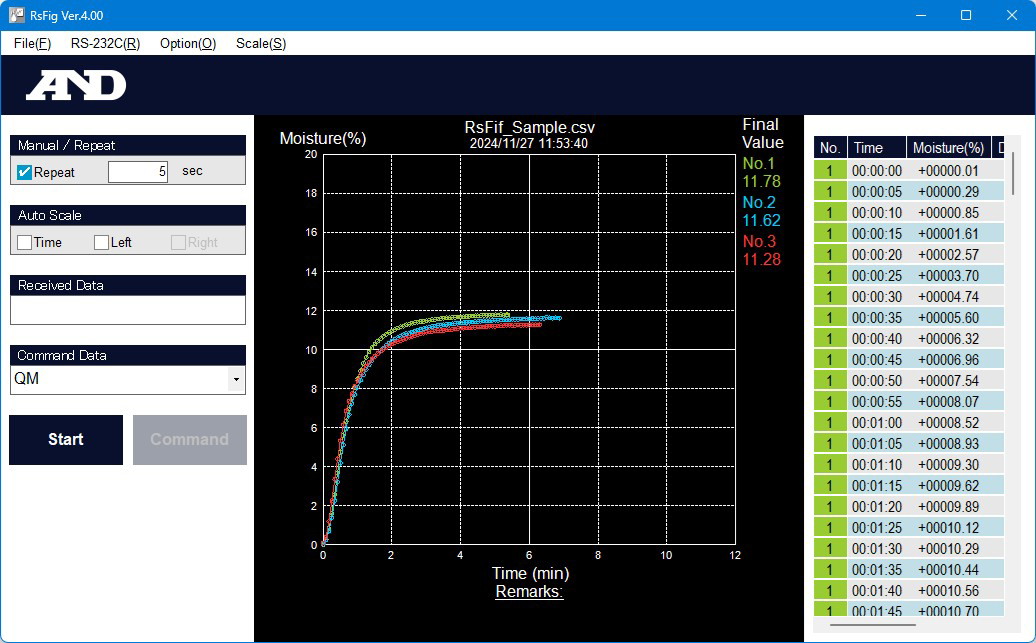

RsFig visualizes changes in moisture content over time. This software is effective for checking moisture content changes and determining appropriate measurement conditions.
Data Visualization: RsFig visualizes moisture content trends using real-time data from A&D’s moisture analyzers. In addition to monitoring
     measurement progress, it can assist in optimizing measurement conditions. Previously saved CSV data can also be graphed, offering
     a convenient way to review and analyze past results.
Data Comparison: Multiple data sets can be overlaid and plotted on the same graph for comparison.
Statistical Analysis:RsFig can display statistical data based on multiple results, including Maximum, Minimum, Average,
     Standard Deviation (Std Dev), and Coefficient of Variation (CV), to support analysis.
Data Output: Recorded data can be saved in CSV file format. The plotted graph can be printed.
RsTemp
(Optimum Temperature Search Program)

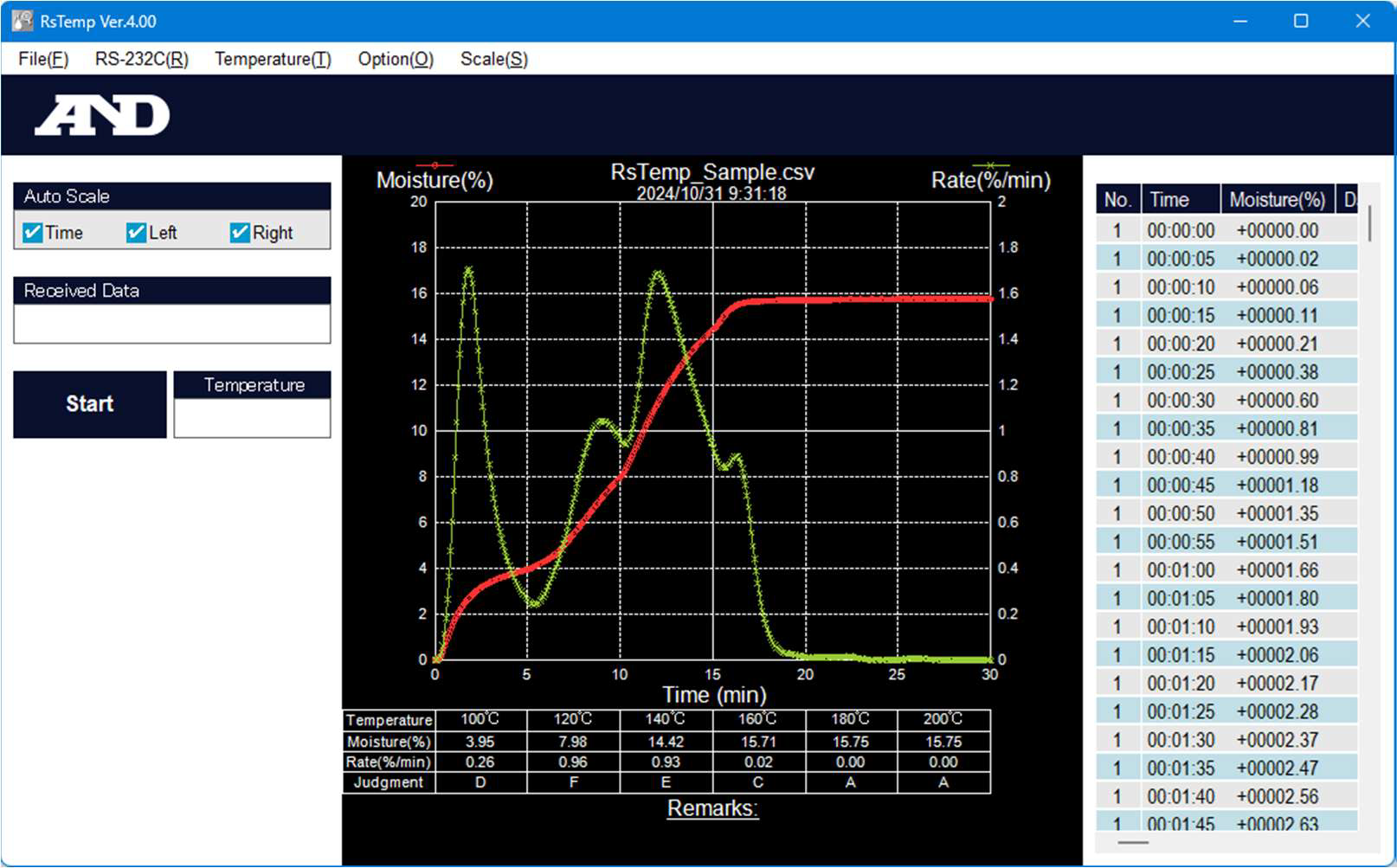

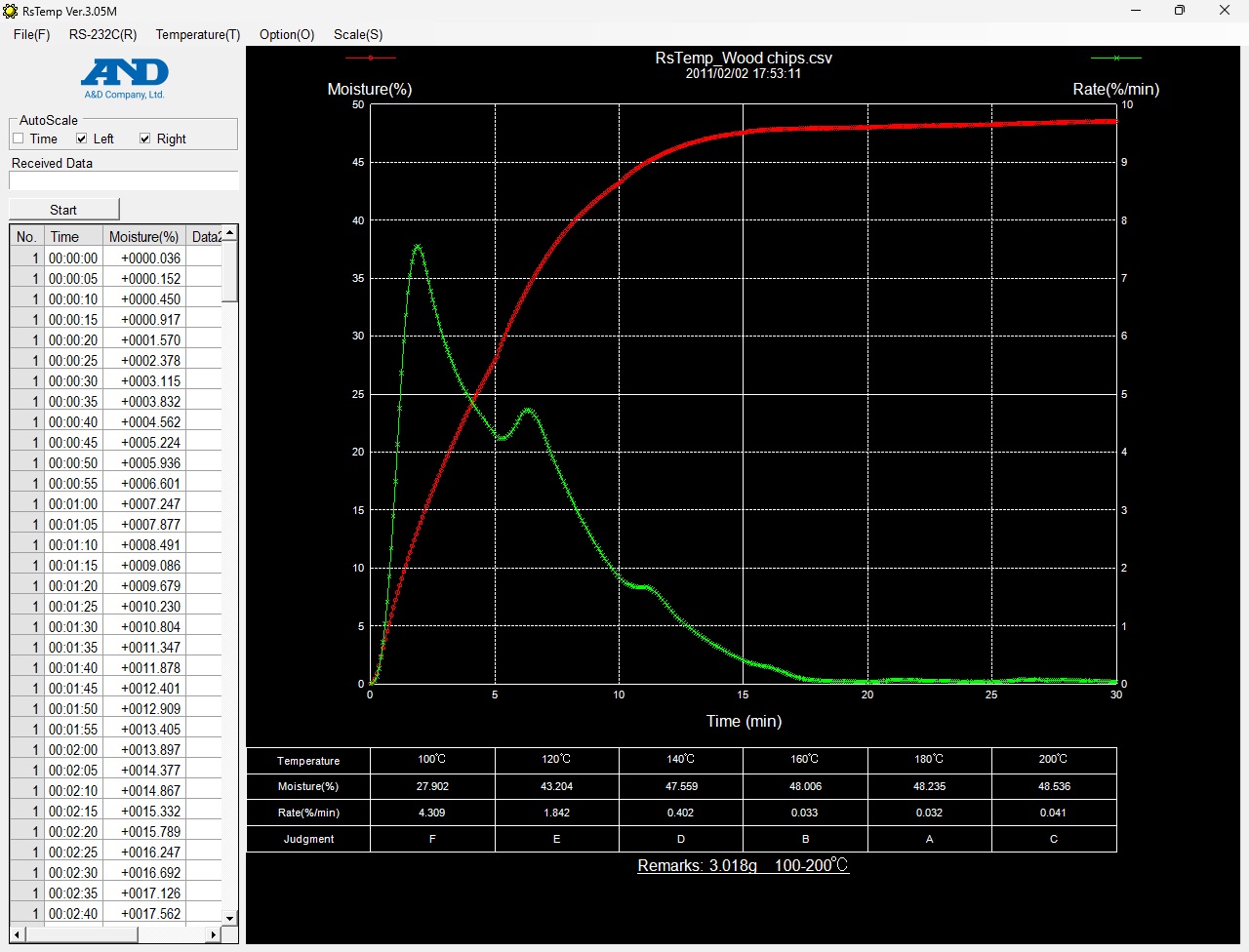

RsTemp is designed to automatically determine the most suitable drying temperatures for new samples, typically completing the process in about 30 minutes.
Quick Identification of Optimal Drying Temperature
RsTemp automatically increases the drying temperature from 100 °C to 200 °C in 20 °C steps, holding each temperature for 5 minutes (adjustable). RsTemp monitors the moisture content and drying rate and determines the optimal temperature based on the moisture content change curve. During the process, the moisture content and drying rate are graphed in real time, providing clear visual feedback.

Note: Suggested temperatures are for reference only and do not guarantee accurate measurements.
RsSetup
(Configuration Change Software)

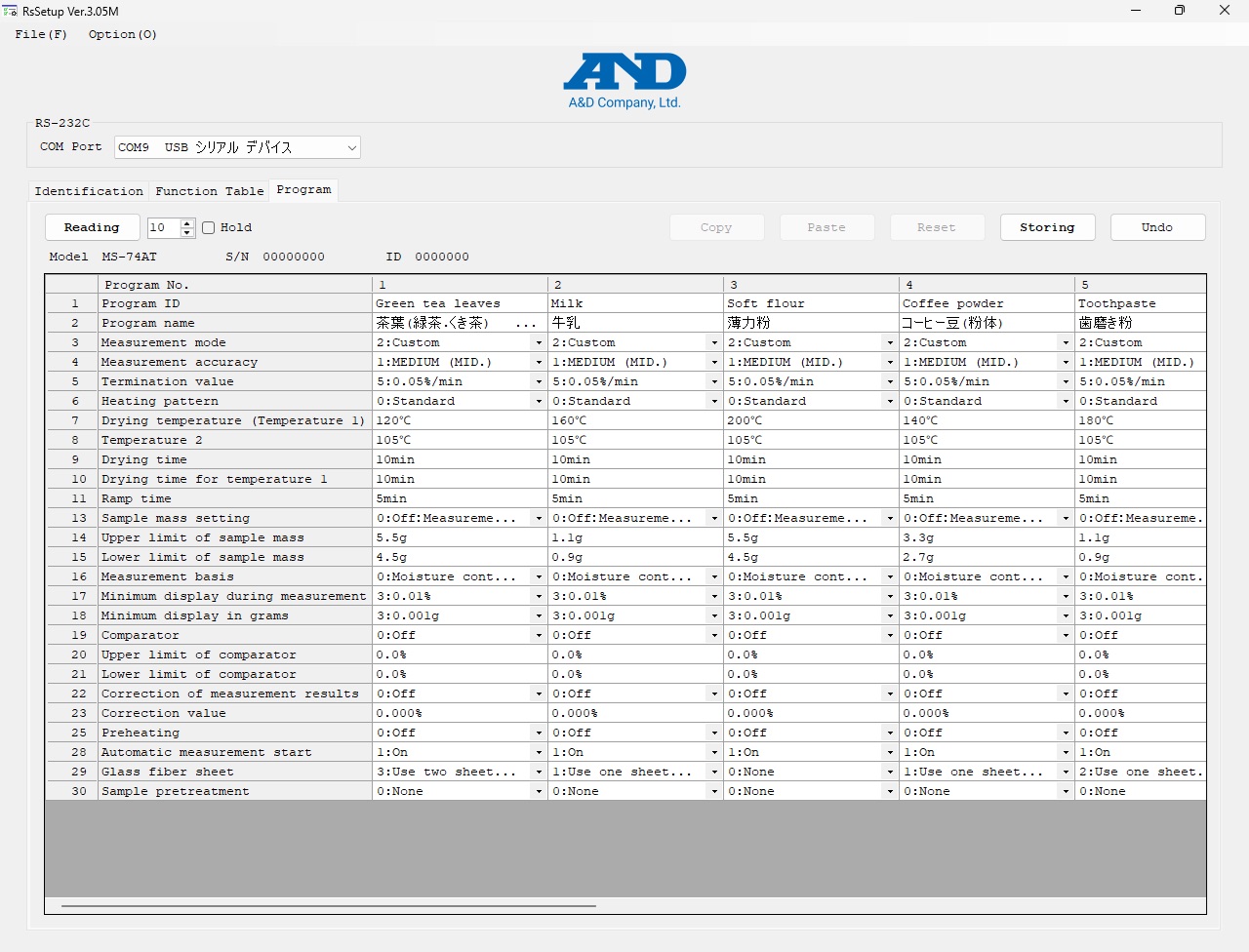

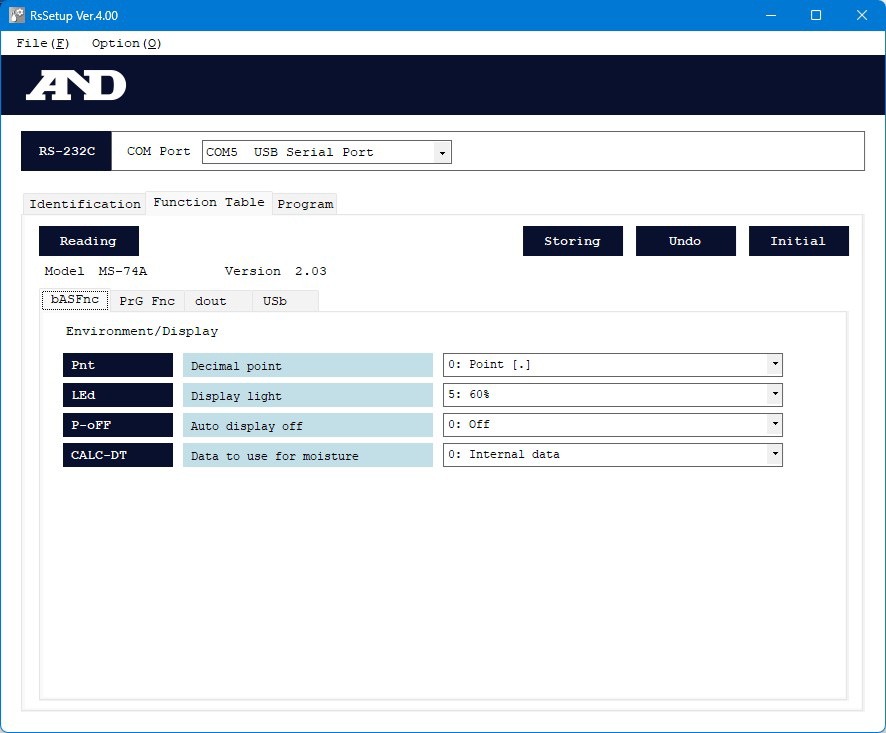

RsSetup allows users to centrally manage and modify the moisture analyzer's configuration parameters from a PC, streamlining the setup process and helping to reduce operational errors.
Centralized Management: It enables reading, checking, and changing the analyzer's ID number, internal settings (Function Table),
     and measurement programs all at once.
Configuration Transfer: Internal setting data can be saved in CSV file format, while measurement programs can be saved in TSV file format.
     This functionality allows configurations to be easily shared and applied across multiple units.
Compatibility Note: RsSetup supports the new series (MS-74A(T)/MX-53A(T)/MF-53A/ML-53A), but it does not support the previous
     MS-70/MX-50/MF-50/ML-50 series.
Download WinCT-Moisture
