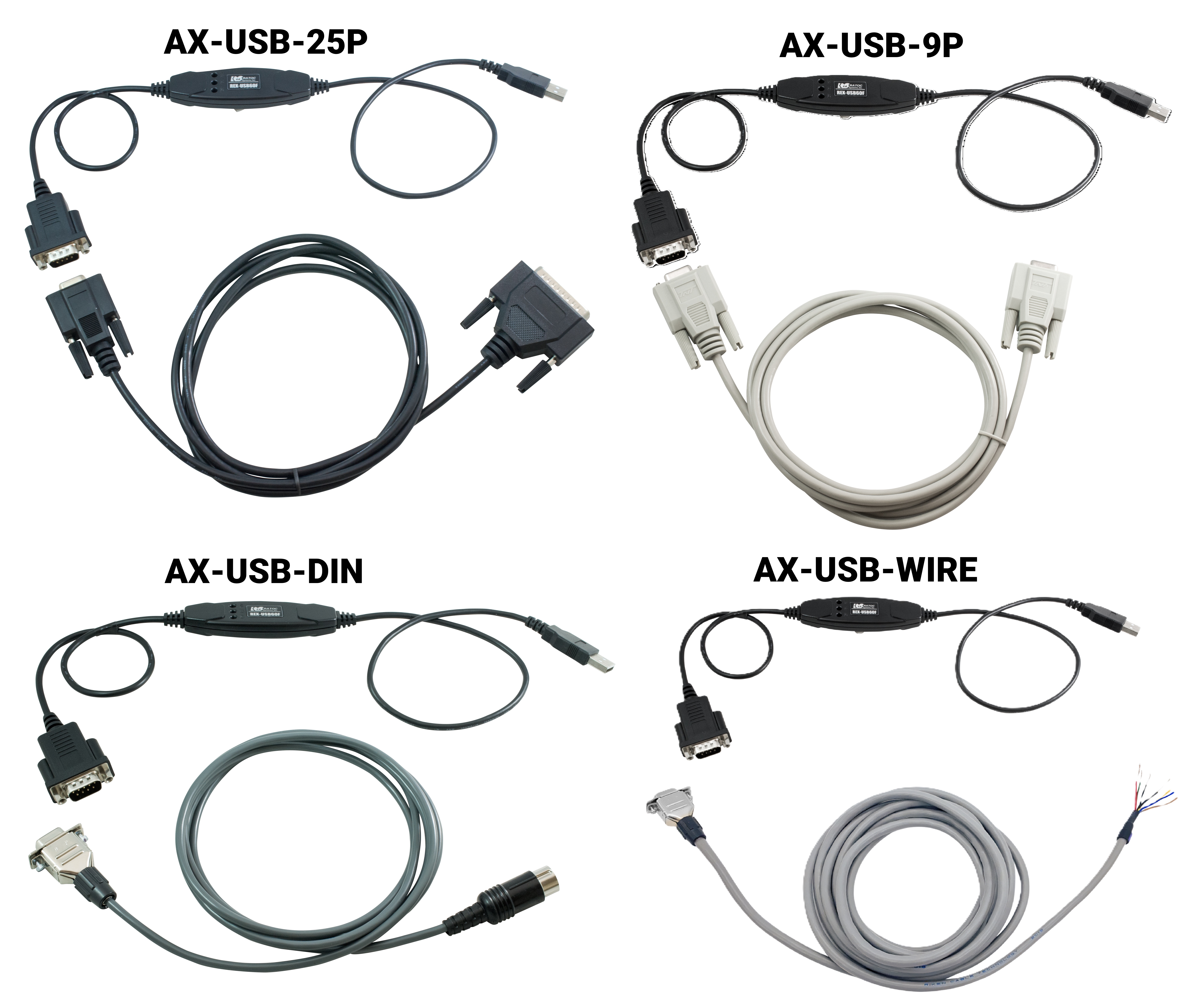

AX-USB-25P / AX-USB-9P / AX-USB-DIN
USB Converter and Cable Set
AD-1688 Weighing Data Logger
The USB converter and cable set allows weighing data to be transferred from a RS-232C port on balance or scale to a USB port on a PC.
Drivers can be downloaded from the manufacturer's website.
Please send your inquiry here

USB Converter and Cable Set Model AX-USB-25P (D-Sub 25P male - USB) AX-USB-9P (D-Sub 9P female - USB) AX-USB-DIN (DIN 7P - USB)
Compatible balance and scale models AD-4212A / AD-4212B / GF / GF-K / GP / GR / GX / GX-K / HD / MC / MS-70 / MX-50 / MF-50 / ML-50 AD-4212C / BM / EK-i / EK-L / EW-i / EJ / FC-i / FC-Si / FX-CT / FX-i / FX-iWP / FZ-CT / FZ-i / FZ-iWP / GF-A / GH / GX-A / HV-C / HV-CP / HW-C / HW-CP / HR-A / HR-AZ / HR-i FG / HC-i / HV-WP / HW-WP
Balance / scale interface D-Sub 25P female D-Sub 9P male DIN 7P
Cable D-Sub 25P-D-Sub 9P (approx. 203 cm) D-Sub 9P-D-Sub 9P (approx. 179 cm) DIN 7P-D-Sub 9P (approx. 205 cm)
Converter D-Sub 9P-USB (approx. 82 cm) D-Sub 9P-USB (approx. 82 cm) D-Sub 9P-USB (approx. 82 cm)
