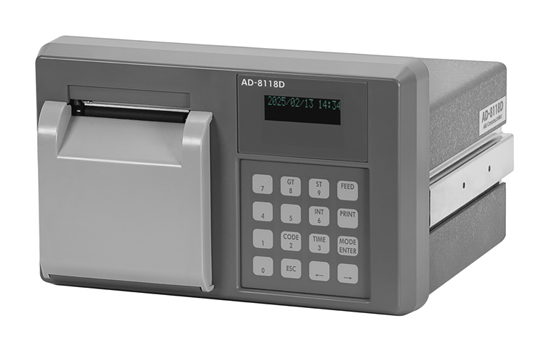

AD-8118D

PANEL-MOUNT THERMAL PRINTER

	The AD-8118D is a panel-mount thermal printer designed for use with A&D indicators, scales, and electronic balances.

	Brochure (PDF 367 KB)
	Manual (PDF 1.9 MB)
	Drawings (PDF)
	2D CAD (DXF)

Features

Date and Time Printing
Equipped with a calendar clock that automatically prints the date and time.

High-Speed Thermal Printing
Utilizes a 24-digit thermal printing mechanism with a printing speed of approximately 4.0 lines/second.

Data Accumulation & Statistics

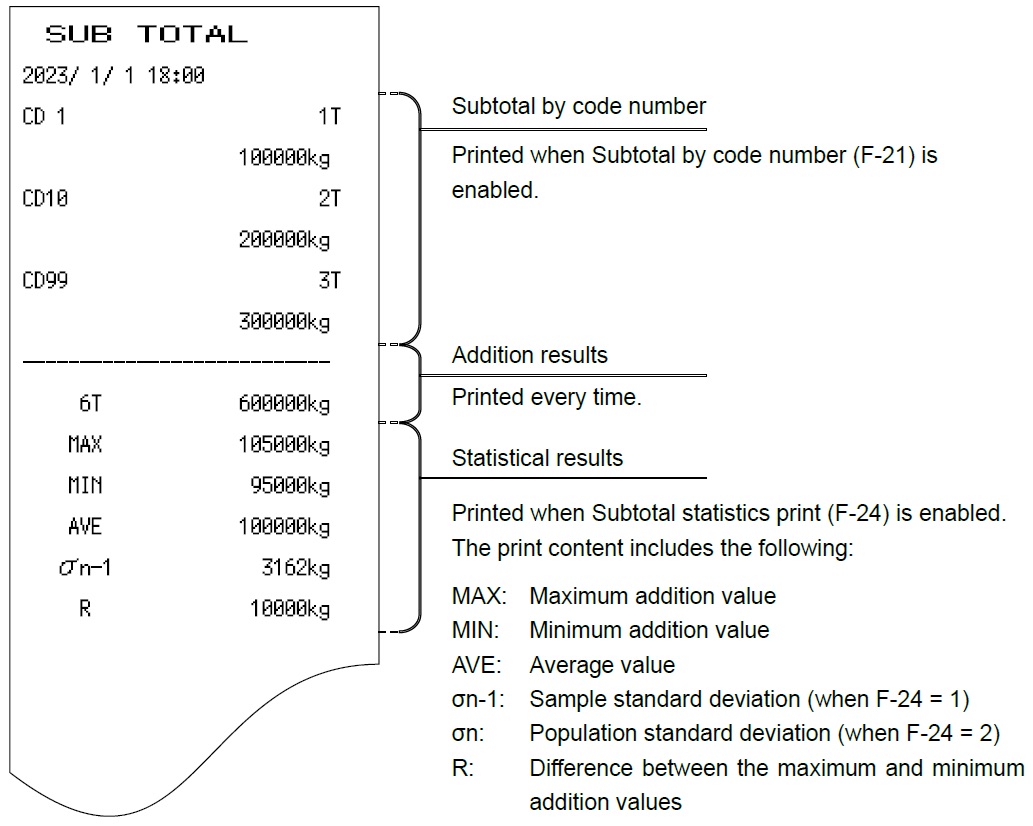

Features functions for total (grand total) printing, subtotal printing, and statistical results printing by code number.
Totals and subtotals are stored in non-volatile memory and are retained even when the unit's power is turned off.

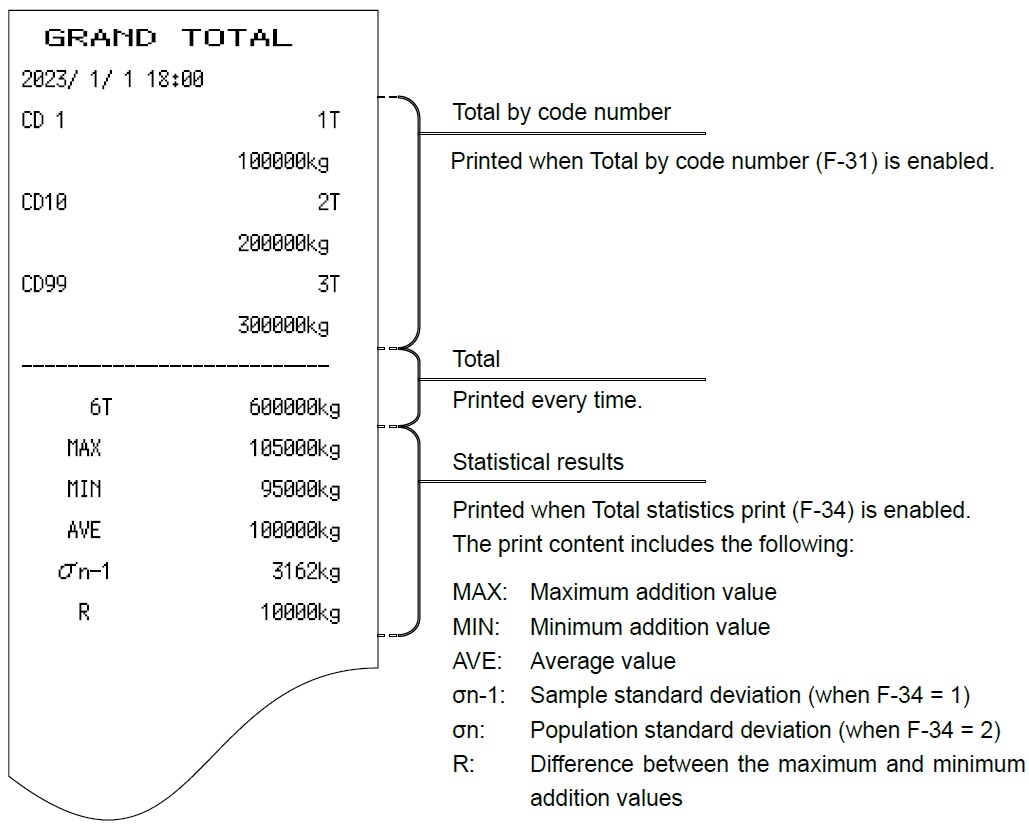

Print example for Grand Total printing

Print example for Grand Total printing

Versatile Print Options

Manual printing	Print when the [PRINT] key is pressed or a print command is received via control input
Automatic printing	Print when weighing data is received from an external device
Interval printing	Print at set time intervals
Dump printing	Print received data exactly as received

Customizable Output

Offers a programmable print format, allowing users to edit and customize printed content.

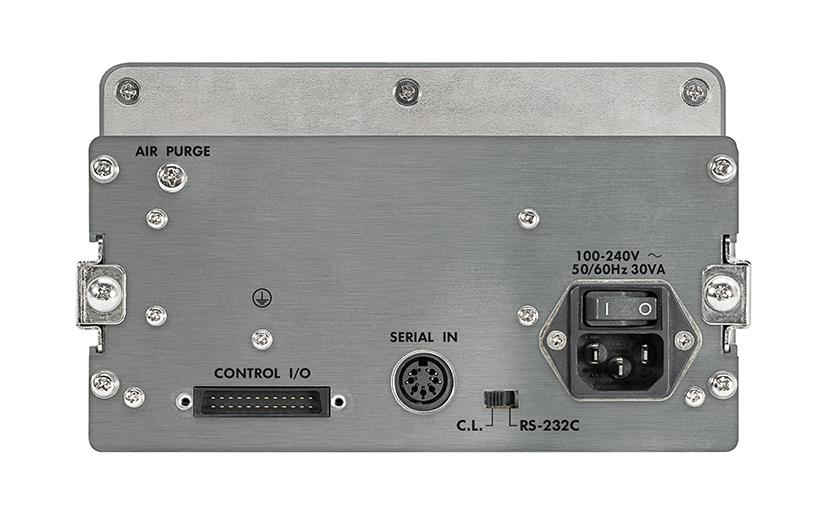

Built-in interface

RS-232C or current loop (serial input) (switchable)

Specifications

External dimensions	192 (W) × 181 (D) × 120 (H) mm
Installation method	Panel mounting
Operating temperature and humidity range	5 to 40 °C, 80 % RH or less, no condensation
Power supply voltage	100 to 240 VAC +10 %/-15 %, 50/60 Hz ±5 %
Maximum apparent power	25 VA
Inrush current	100 V AC: 15 A or less 230 V AC: 35 A or less
Fuse	Internal (not user-replaceable)
Printing system	Thermal printer (direct thermal printing)
Printing width	Standard character: 12 × 24 dots, 24 columns/line Enlarged character: 24 × 24 dots, 12 columns/line
Character size	Standard character: 1.5 (W) × 3.0 (H) mm Enlarged character: 3.0 (W) × 3.0 (H) mm
Printing speed	Approx. 4.0 lines/sec
Printer paper	Width of roll paper 58 mm, 1 roll included as standard
Display	LCD display, 16 columns, 2 lines (Character width: 1.86 × height 4.56 mm)
Key switches	16
Serial input	Current loop input/RS-232C
Serial output	Current loop output
Non-voltage contact input	16 points
NPN open collector output	2 points

Standard Accessories

Name	A&D product number	Qty
Power cable	*	1
Ground adapter	1ETMK-18	(1*)
Printer paper (1 roll included as standard)	AX-PP147-S (Set of 5 rolls)	1
Rubber foot	110SJ-5023	4
Round DIN connector, 7 pins (soldered connection)	1JATCP0576	1
Control I/O connector case	1JI360C024-B	1
Control I/O connector (soldered connection)	1JI361J024-AG	1
Simplified Instruction Manual	1WMPD4005326	1

* Determined by the modification code.
Note: Recommended storage conditions for printer paper are 25°C and 65% RH or lower.

Storage Guidelines for Thermal Paper AX-PP147 (PDF 120KB)

Optional Accessories

AX-PP147-S : Thermal printer paper (5 rolls)
