Product

Medical

AD-6351

Digital Height and Weight Scale


	The AD-6351 is a digital height and weight scale with a compact design and large casters for portability.
	Brochure (PDF 968 KB)

Features

Can display measurements in kg

Lightweight and compact design for easy storage

BMI measurement function

Battery operation for over 40 hours

Thin 75 mm design for easy use

Adjustable indicator position


Easy to carry	Lightweight & compact size	User-friendly display

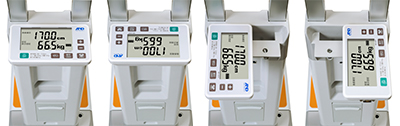

Flexible display orientation	Height & Weight display mode	BMI & Weight display mode

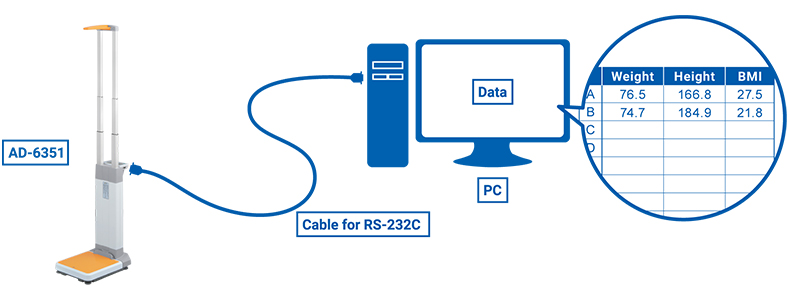

DAS (Data Acquisition System)

Automated data collection

AD Printer Unit (AD-PR580)

・To use this product, you will need a 75 cm (AX-KO3937) or 2 m (AX-KO1371-200) RS-232C cable
・An AC adapter for the printer is included.

Options

Printer paper(5 pieces/box)

AD printer unit

Cable for RS-232C (2 m)

Cable for RS-232C (75 cm)

Switch (AD-SW600)

AC Adapter for AD-PR580*

AC code for AX-BLS-120W*
* This is an accessory for the AD-PR580.

Specifications

Designated paper		AX-PR147-S W 58 mm x L 29 m
Power supply		AC adapter(AX-KO3946)
Weight Measurement	Capacity	150 kg
	Graduation	0.1 kg
Height Measurement	Measurement Method	Measurement Method Manual
	Measurement Range	88 cm to 210 cm
	Measurement Unit	1 mm
	Measurement Accuracy	±2 mm
Power Source		6 Batteries LR6 (AA) / AC Adapter (100 V to 240 V)
Battery Life		Approx. 40 hours (Using batteries)
Interface		RS 232C 1ch (D-sub 9P)
Dimensions (W) x (D) x (H)		330 x 483 x 964 mm (When stored) Platform: 330 x 330 x 73 mm
Weight		13 kg (Unit without batteries)
Functions and Properties		SBMI measurement, TARE (Default function), Auto power-off, Clock (External output), External ID input

・Please purchase an AC adapter that complies with the standards of your region.
・Ensure that the product complies with the regulatory requirements of the country where it will be used before use.
・Specifications may differ in each country. Please contact an A&D subsidiary for more information.
