WCM-63A Series

Integrated Type Metal Detector & Checkweigher

	Integrated Metal Detector and Checkweigher for Space-Efficient Dual Inspection

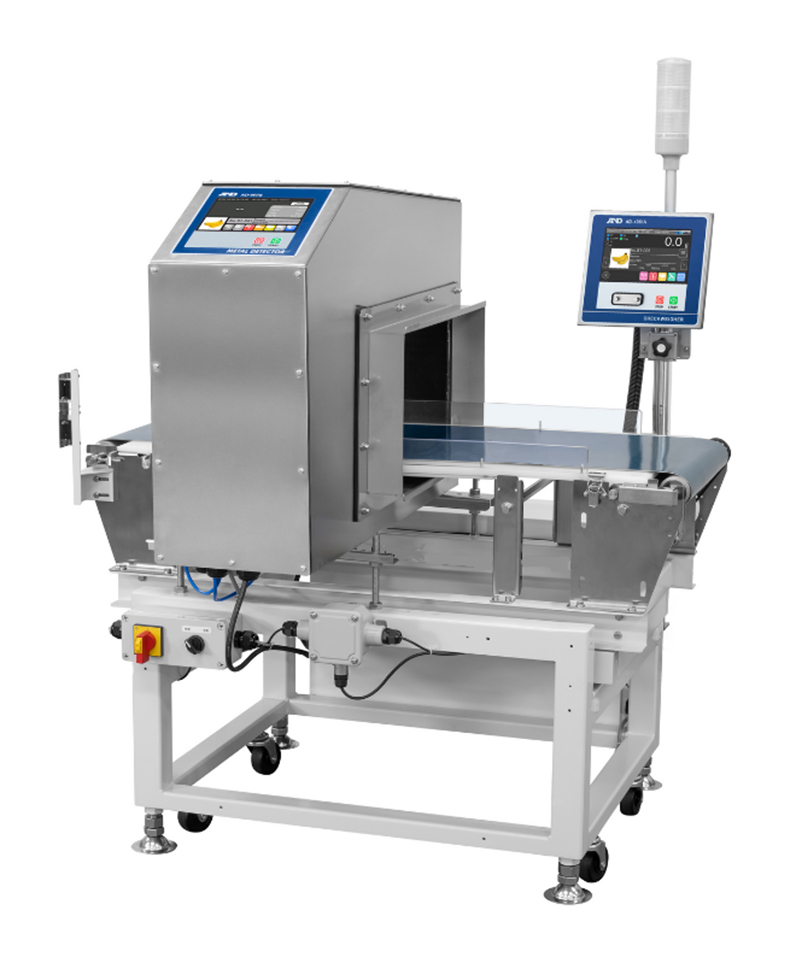

	WCM-63A Series is an integrated type Metal Detector and Checkweigher, suitable for the inspection of heavy products. It enables simultaneous inspection for metal contaminants and checkweighing, contributing to reduced inspection time. Additionally, it allows both inspections to be performed in a space-saving design.

	Brochure (PDF 1.4 MB)

Features

Its space‑saving design allows easy replacement of existing inspection systems without redesigning your production line.

The applications:
・ Quality inspection of rice, grains, flour, feed, and similar products
・ Pre‑shipment inspection of shipper cartons, containers, and bulk bags for metal contaminants and weight
・ Acceptance inspection of raw materials

Display unit: 7” color touchscreen

Stainless Steel Cover for display unit is available as an option. (Factory option) ^*

Storable product info: Up to 1,000 products (including product images)

Data such as Summary and Operation History can be output to a USB flash drive.

Assures consistent quality by way of the Operation History function and restricting operation according to user level

Advantages

7” color touchscreen

Intuitive user interface and high visibility LCD color touchscreen with high-speed CPU enable easier operation.
Product-selection can be interlocked between Metal Detector side and Checkweigher side.

Registration using images imported from USB flash drive

Product images can be quickly uploaded to the Checkweigher and the Metal Detector from a USB flash drive. The images can be easily registered as a thumbnail image for each product.

Automatic frequency selection system

This system realizes a stable inspection and better sensitivity. The Metal Detector automatically selects the optimal frequency bands(high, medium, low) for higher detection sensitivity before the start of an inspection. This system realizes stable inspection and better detection-sensitivity.

User management

To operate the device, user name and user level are registered.
For each user registered, you can limit the operations they can perform depending on their user level.
Inadvertent operation can be avoided by assigning each user a user level from the four levels below.

Data summary

Various summary data such as histograms (frequency including defects), X-Bar Control Chart, R Control Chart, total summaries, etc., are available.
You can visually confirm fluctuation of Inspection results and adjust your manufacturing machine accordingly.


Histogram display screen	X-Bar Control Chart	R Control Chart

History function

Inspection results can be automatically recorded in a USB flash drive during inspection.

Operational History shows a record of the changes made to the settings.
The Operation History as well as inspection History can be saved onto a USB flash drive.
The history data can be utilized as a record for HACCP management.


Weighing Result display screen	Example of Weighing Result output in CSV format	Operation History display screen

Summary, Weight Result, Control Chart and Histogram (PDF or print)

After weighing, press the “PDF” key on the summary display. A PDF report is output to a USB flash drive.


Summary	Weight Result	Control Chart

Specifications

Model	WCM-63A-15K	WCM-63A-30K
Capacity	15 kg	30 kg
Readability	1 g	1 g
Accuracy (3σ)^*1	1.2～3.2 g	10 g～
Max. throughput^*1	40 pcs/min	20 pcs/min
Conveyor belt width	350 mm	500 mm
Conveyor belt speed	10 / 20 / 30 / 40 m/min^*2	10～30 m/min^*3
System length	1,000 mm	1,500 mm
Max. pass height^*4	140 or 220 mm
Max. product length	700 mm	750 mm
Max. product width	350 mm	350 mm
Dust/waterproof performance	Equivalent to IP30
Number of registrable products	1,000 products (10 groups × 100 products)
Operation temperature / Humidity range	0 to 40℃ / Humidity 85% or less (with no condensation)
Power supply^*5	Single phase AC 100, 200 V or 220V (+10% / -15%), 50 / 60 Hz

*1 Depends on the shape and the condition of the product and installation environment.
*2 The belt speed is adjustable in four steps.
*3 The belt speed is fixed at the delivery setting.
*4 Please specify the pass height when placing your order.
*5 Please advise the required voltage when placing your order. A&D can provide customized systems for other voltages.
