Unifizer NS3000 Platform Software

Connects RA Series and the PC at existing LAN environment, and enables to remote control functions as data recording and various settings.

Features

Operations such as setting of RA Series and start of measurement can be controlled from the PC at remote location.

Enables RA Series to work as a front-end device and transfer/save measured data at real time on HDD of the controlling PC (Max 1ms)

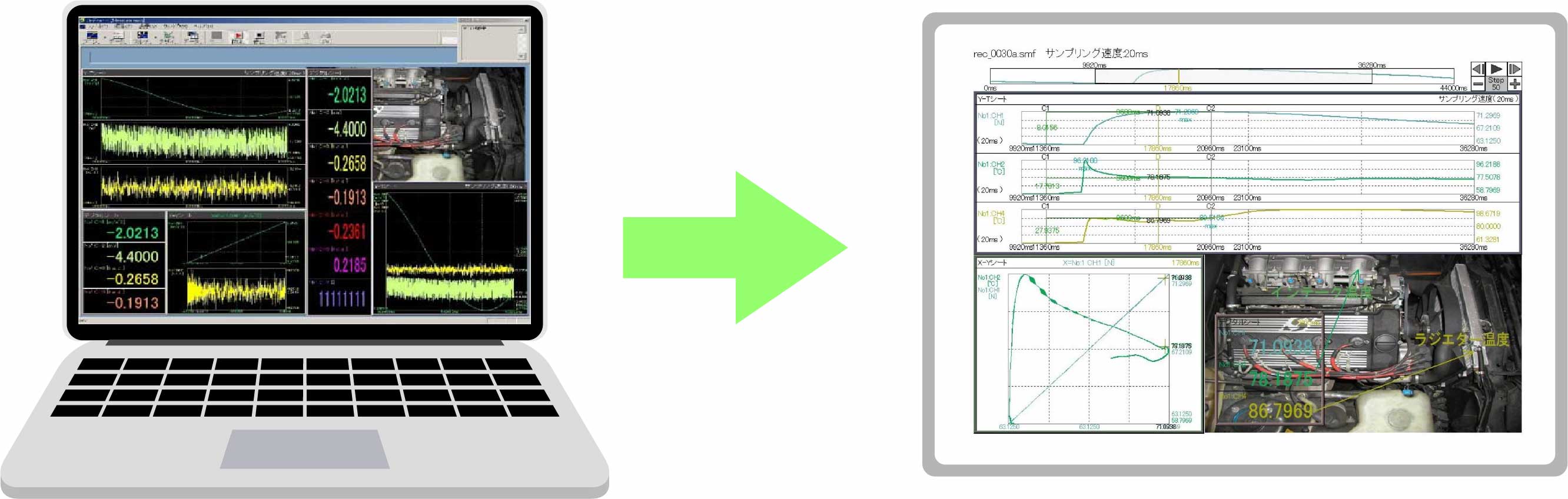

Users can generate reports of measured data easily.

Multiple measured data files can be replayed simultaneously for data comparison. Also, replayed data can be used for various calculations.

Specifications

Required OS	Windows2000 / XP / 7
Applicable Model	RA2300 / RA2300A / RA2300MKⅡ / RA2800A
Interface	Ethernet Maximum units to control: up to 8 units
Remote Control Mode of RA	Pen recorder mode HD recorder mode Memory recorder mode Multi recorder mode
Rela-time Data Transfer Speed	1ms to 1000ms (1ms step), 1 sec or over Max capacity: up to approx half the free space of designated HDD of the PC ** Recommended CPU: 2GHz or better. Data transfer may be slower than the speed set by the PC CPU.
Real-time Data Display	Y-T waveform, X-Y waveform (division or overlap displays), digital
Display of Replayed Data	Y-T waveform, X-Y waveform(division or overlap displays), digital Data recorded on mainframes of RA Series. Extensions that can be replayed: .FSD, .FPP, DRT
Cursor Information	Readings of value, time/amplitude differences of cursor 1 & 2. Max and min values between cursors.
Arithmetic Functions	Calculations between channels, power, square root, absolute value, common logarithm, exponent, RMS, trigonometric function, moving average.
File Conversion	Conversion to CSV file
Saving/Reading of Recording Condition Files	Available for arbitrary files

Configuration

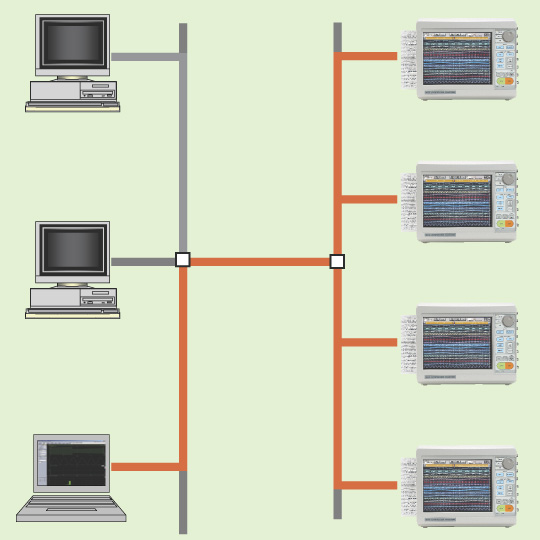

Remote control via LAN

Any PC can control multiple RA Series via LAN (up to 8 RA Series)

Item	Model	Description
Unifizer	NS3300	For both online and offline use.

Data Acquisition System RA2300MKⅡ

Unique & Easy "Pen Recorder" Mode: Easy operation like a pen recorder by the touch panel and virtual amp controls.
Large 12.1" Display: 12.1" TFT color LCD for better visibility of measured data
Direct Sensor Inputs: 11 amplifiers for various signals: voltage, strain, temperature, vibration, pressure, F/V, etc.
Long-term Continuous Recording on HDD
Fast-speed Printer as Standard: Fast printout up to 100mm/sec
