| LC1205-USB |

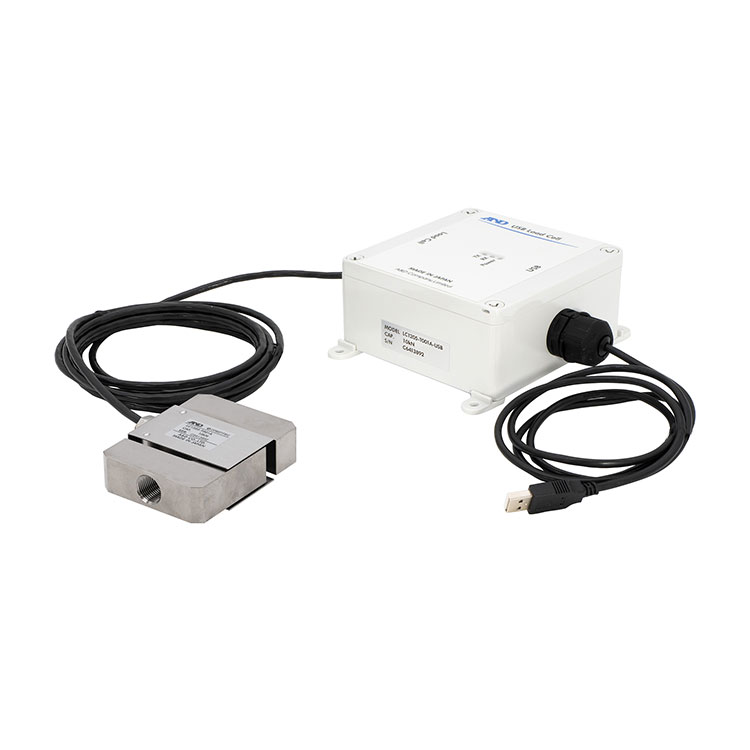

| S-Type Load Cell with USB Output |
|
|
|
|
 |
| Features |
 S-type digital load cell for force measurement
Standard USB output for easy PC connection. (Using the measurement software "Win-CT-DLC")
No additional power supply is needed (USB bus powered)
Pre-calibrated for immediate use.
User-friendly for all, no indicator expertise required.
Versatile applications beyond industry use.
|
 |
|
| Measurement and logging software WinCT-DLC |
 |

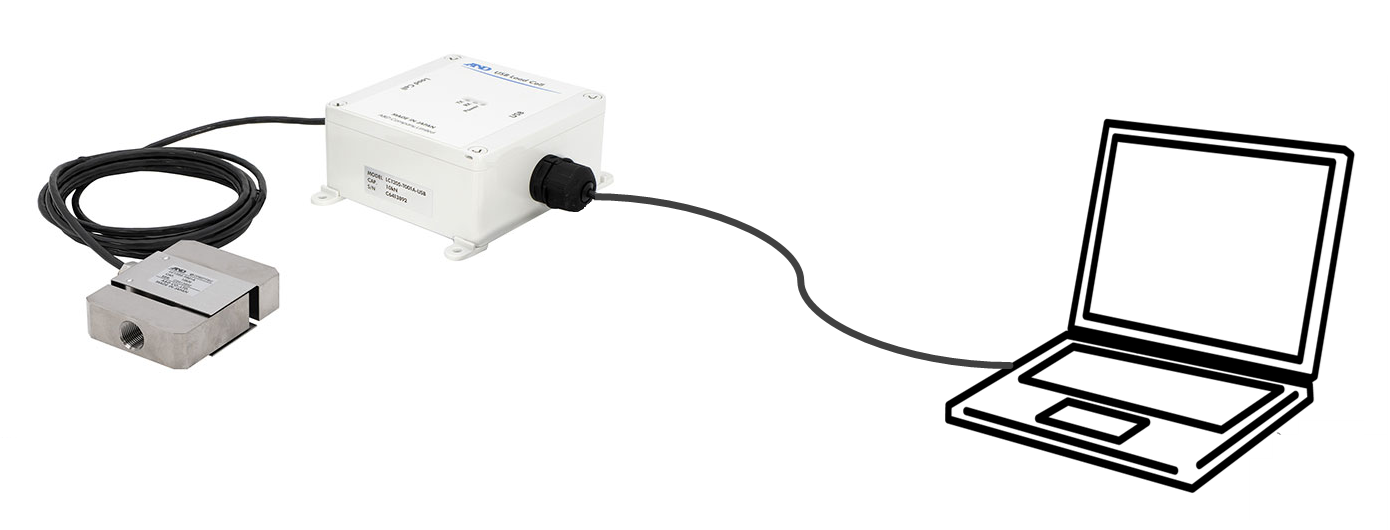

All you need to do is connect the LC1205-USB to your PC and download our free WinCT-DLC software. This user-friendly software streamlines the process, allowing you to start measuring right away.
|
|
|
 WinCT-DLC instruction manual (PDF 1.3MB)
|
|
|
| Specifications |
| Model No. |
LC1205 K020-U |
LC1205 K050-U |
LC1205 K100-U |
LC1205 K200-U |
LC1205 K500-U |
LC1205 T001A-U |
LC1205 T002-U |
LC1205 T005-U |
| Capacity |
200 N (20.39 kg) |
500 N (50.99 kg) |
1 kN (102.0 kg) |
2 kN (203.9 kg) |
5 kN (509.9 kg) |
10 kN (1.020 t) |
20 kN (2.039 t) |
50 kN (5.099 t) |
| Rated output |
200 ±1.000[N] |
500 ±2.500[N] |
1000 ±5.00[N] |
2000 ±10.00[N] |
5000 ±25.00[N] |
10000 ±50.0[N] |
20000 ±100.0[N] |
50 ±0.2500 [kN] |
| Safe load limit |
200% of R.C. |
| Ultimate safe overload |
250% of R.C. |
200% of R.C. |
| Load Cell Cable |
φ6mm / 3m |
φ6mm / 5m |
| Load Cell Material |
Aluminum |
Steel |
| Weight |
0.7kg |
0.8kg |
0.9kg |
1.7kg |
2.4kg |
|
|
| Common Specifications |
| Output polarity |
+: Tension, -: Compression |
| Combined error |
0.02 % of R.O. |
| Power supply voltage |
5 V DC (USB bus power) |
| Average current consumption |
5 V DC (USB bus power) |
| Zero balance |
±2% of R.O. |
| Temp. effect on zero |
0.08% of R.O./10 °C |
| Temp. effect on span |
0.05% of Load/10°C |
| Temp. compensation range |
-10°C to 60°C |
| USB cable |
Φ4mm / 1.2m / Type-A |
| Conversion box material |
Polycarbonate |
| Dustproof/waterproof |
Load Cell: IP54 / Conversion Box: IP65 |
| A/D conversion rate |
100 times/s |
| Digital filter |
Select from None, 0.7, 1.0, 1.4, 2.0, 2.8, 4.0, 5.6, 8.0, 11.0 Hz (Initial value 1.0 Hz) |
| Communications standard |
USB Ver.2.0 Full Speed |
| Communication settings |
Baud rate |
38400 bps |
| Character bit length |
8 bits |
| Parity |
Even |
| Stop bit length |
1 bit |
| Terminator |
CR LF |
| Code |
ASCII |
|
